Stadium Perimeter LED Display

Purpose-built perimeter displays for football pitches, arenas and racing circuits. Die-cast magnesium panels keep weight down, while anti-collision structures and IP65 protection handle the rough and tumble of match day.

≥8000 cd/m² brightness
Die-casting magnesium, 28 kg
IP65, anti-collision design
≥100,000 h working life
Rear maintenance

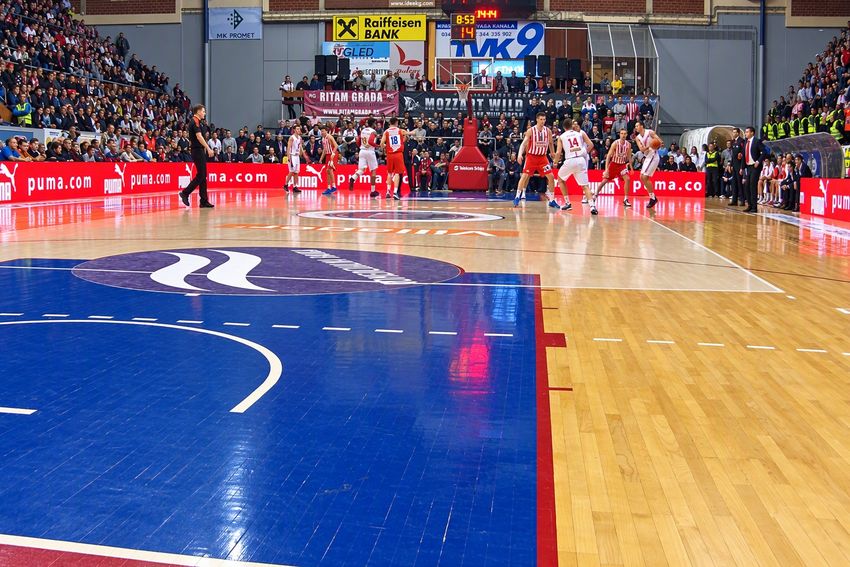

Bright LED perimeter boards circling a packed basketball arena

Key features

What makes it different.

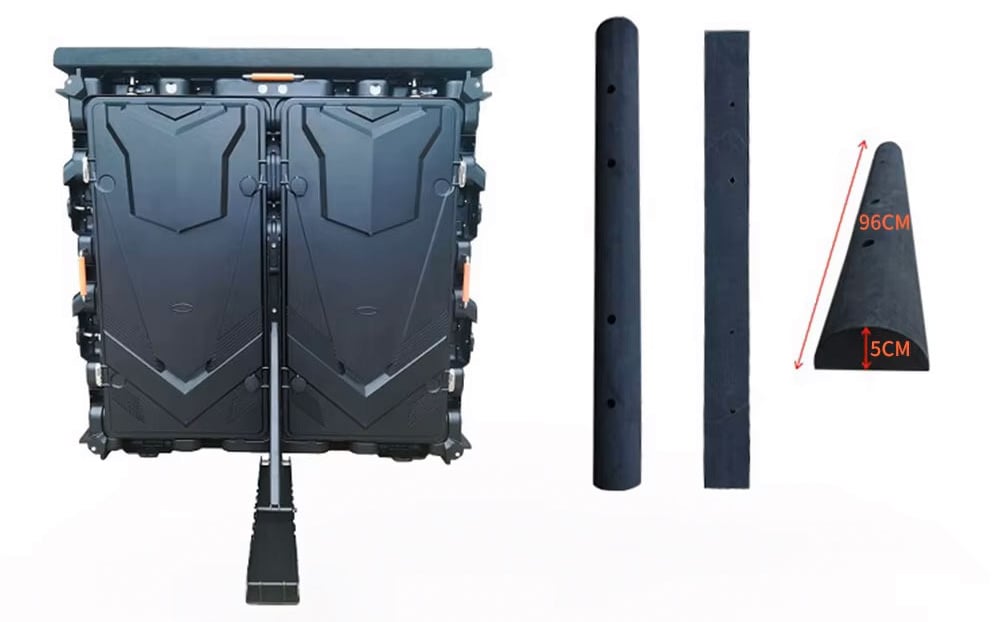

Perimeter LED panel with anti-collision cushion and soft padding strips

Built to be hit

A soft cushion strip across the face and a tilting bracket behind it let the panel absorb a sliding tackle. The module flexes, the cabinet does not crack.

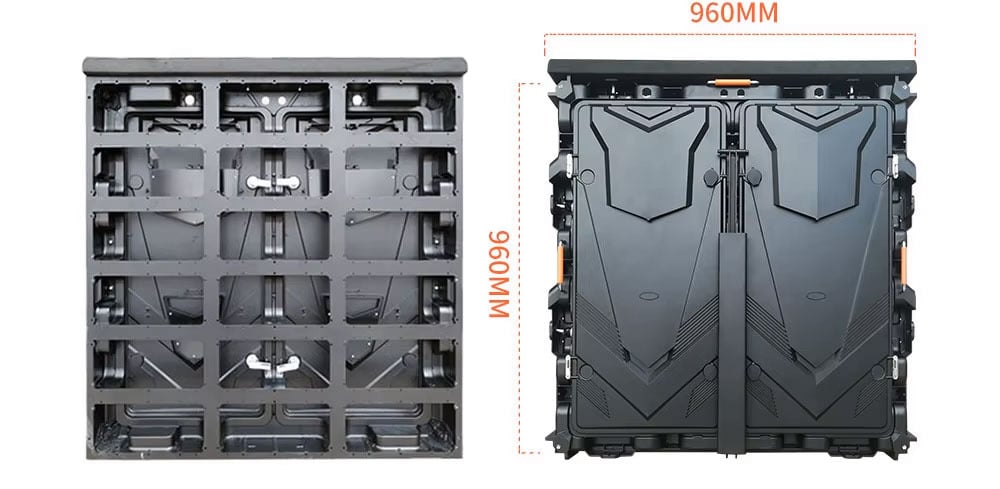

960 x 960 mm perimeter LED panel shown from the front and the rear

Magnesium, so it can hang

A die-cast magnesium panel weighing 28 kg. Lighter panels mean a lighter steel rail — which matters when it has to run the whole length of a pitch.

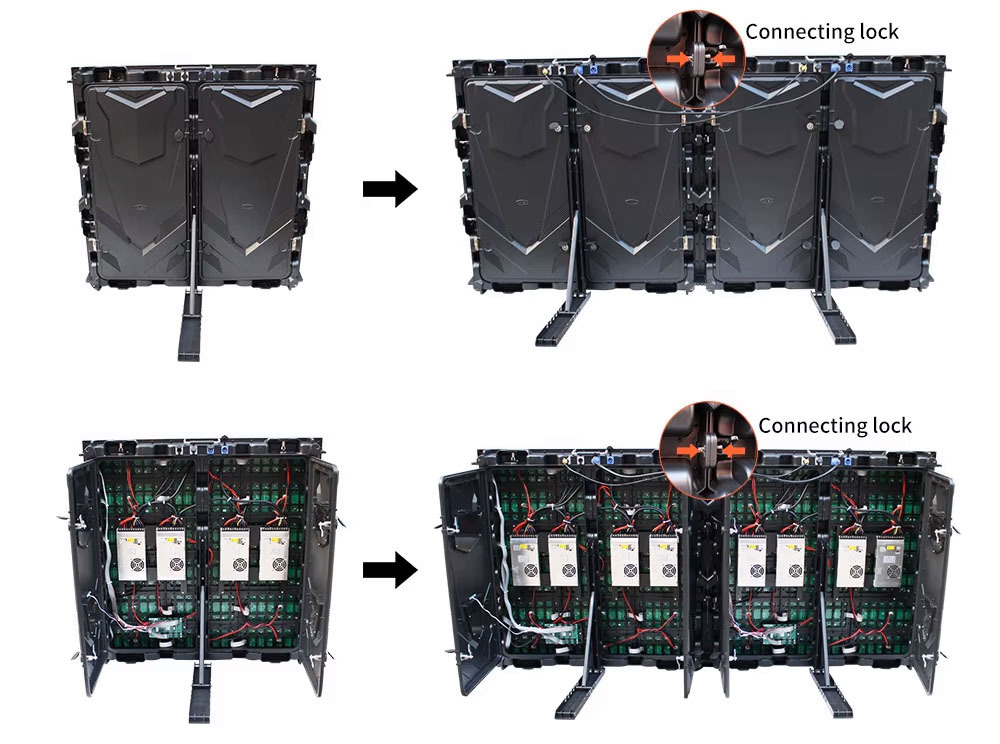

Perimeter LED modular assembly with individual module latches

Modules swap in seconds

Each 320 × 160 mm module is held by its own latches. A damaged module is released from the rear and replaced without disturbing the panels either side of it.

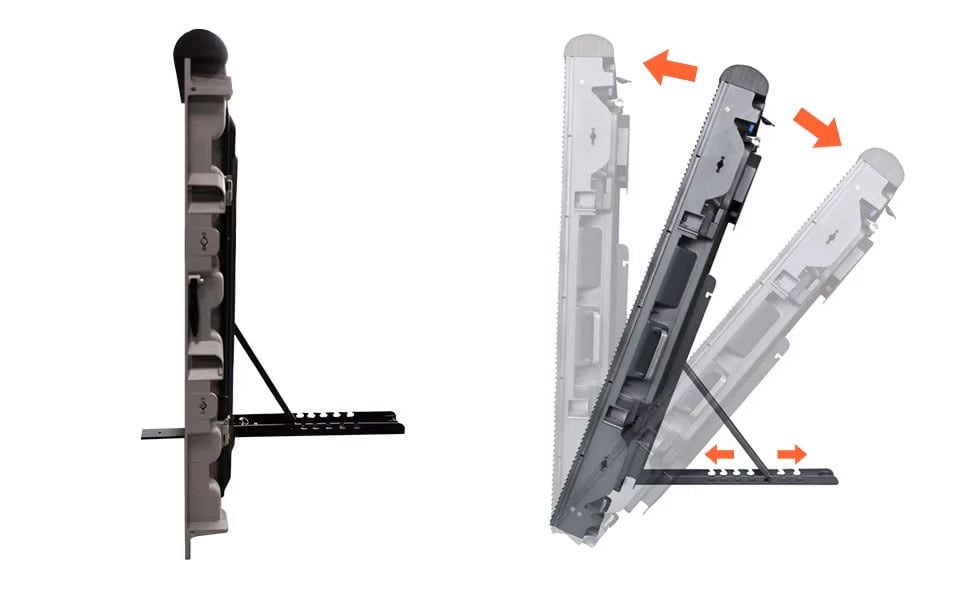

Perimeter LED panel with its sliding support bracket, shown upright and tilted

Locked and levelled

Cast alignment pins and a sliding support bracket keep a long run of panels flat and true, even when the ground behind it is not.

Where it goes

Applications.

Footballers celebrating in front of a bright LED perimeter board — Football stadiums

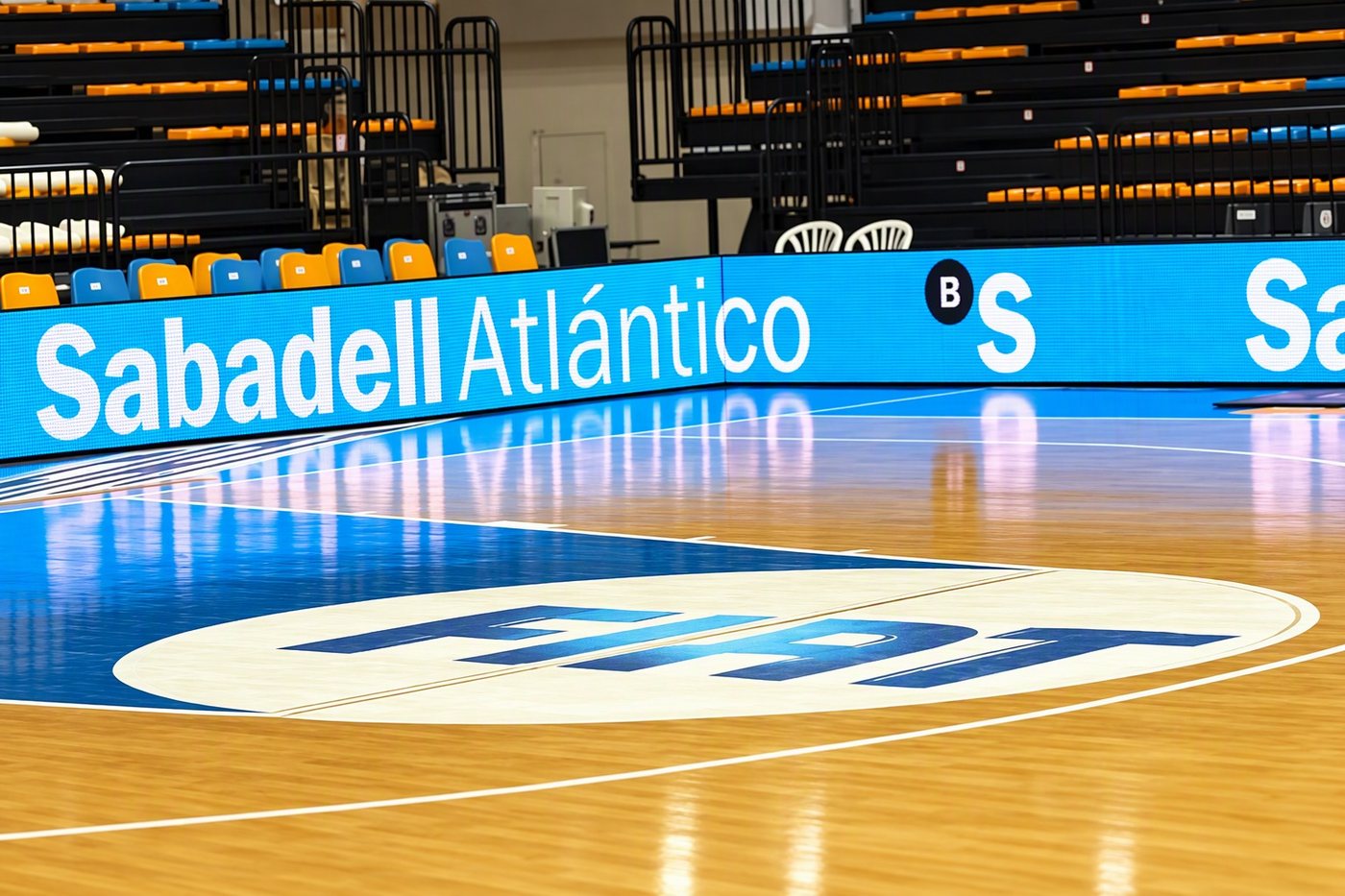

LED perimeter boards lining an indoor basketball court — Basketball arenas

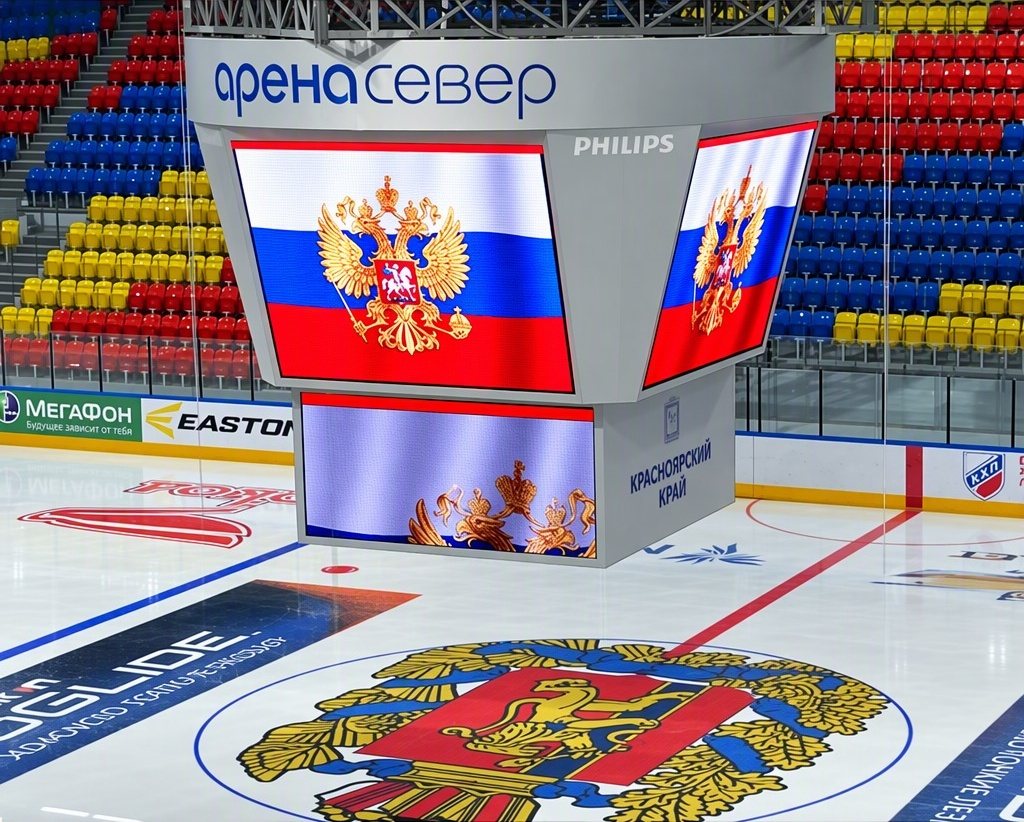

LED jumbotron suspended above an ice hockey rink — Ice hockey & indoor

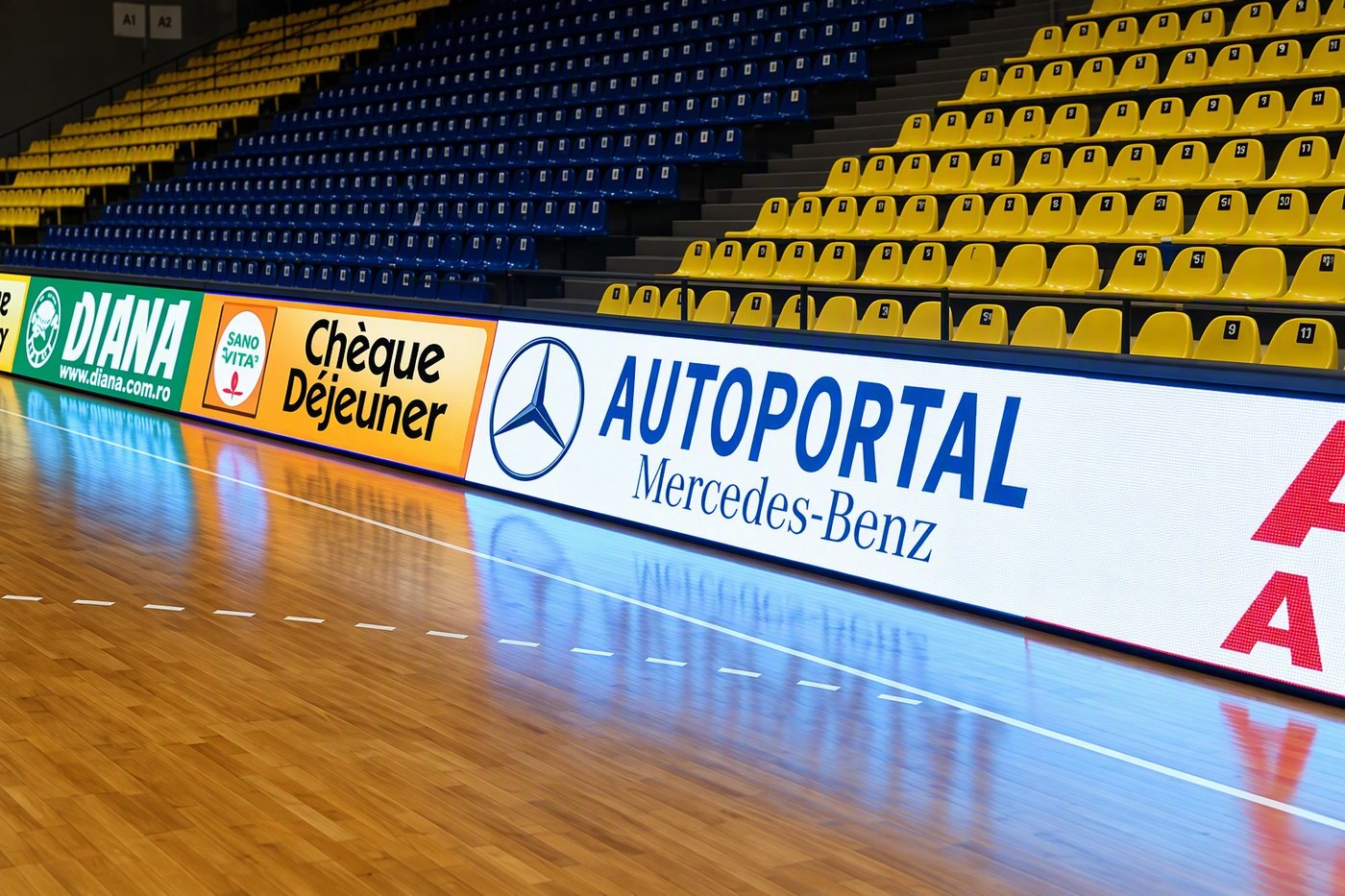

LED perimeter boards around the seating of an indoor arena — Multi-sport venues

Installation & selection

Fitting it, and choosing it.

A perimeter system is really a steel rail plus a panel. Here is how the panels mount, and how to choose a pitch for the distance the crowd actually sits at.

Fixed perimeter

Panels bolt to a continuous steel rail running the length of the pitch, set back from the touchline.
Anti-collision front

A soft cushion strip and a tilting bracket let the panel give way under player contact instead of cracking.
Floor-standing / mobile

Wheeled or ballasted bases for courts, exhibition halls and temporary arenas.

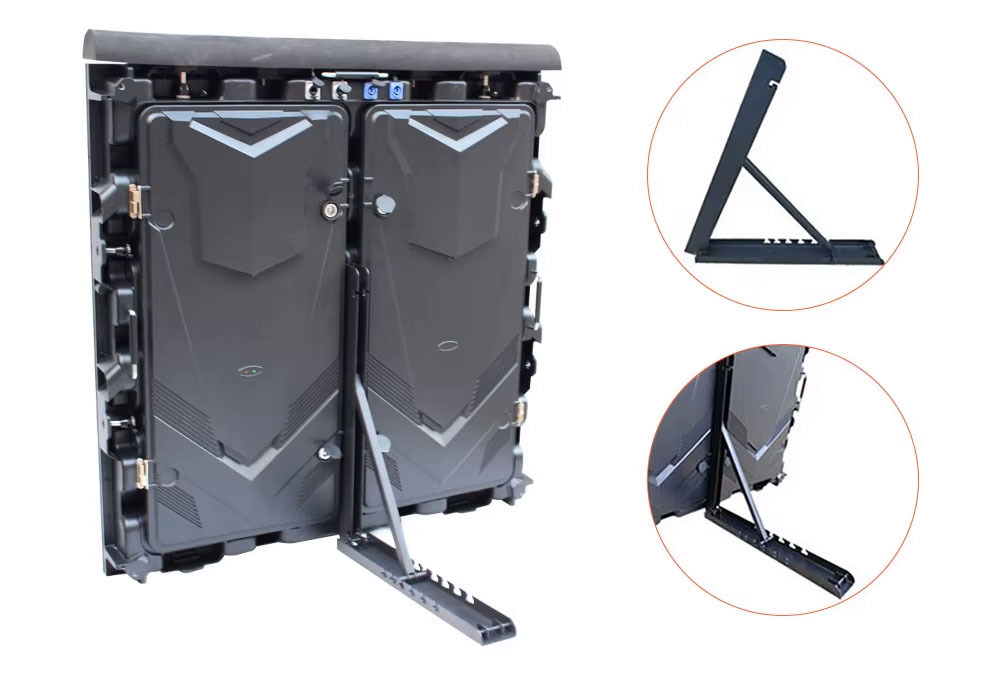

Perimeter LED panel with its mounting bracket

Pixel pitch guide

Up to 30 m

Front rows and courtside seating

30 – 60 m

Mid-stand viewing in most arenas

P10

Over 60 m

Large stadiums and long sightlines

Specifications

Scroll horizontally to see all models →

Parameter	P6	P8	P10
Pixel Pitch	6.67 mm	8 mm	10 mm
Panel Material	Die-casting Magnesium	Die-casting Magnesium	Die-casting Magnesium
Panel Weight	28 Kg	28 Kg	28 Kg
Panel Size (W*H)	960*960 mm	960*960 mm	960*960 mm
Panel Resolution	144*144 dots	120*120 dots	96*96 dots
Module Size	320*160 mm	320*160 mm	320*160 mm
Module Resolution	48*24 dots	40*20 dots	32*16 dots
LED Lamp Beads	SMD2727	SMD3535	SMD3535
Brightness	≥8000 cd/m²	≥8000 cd/m²	≥8000 cd/m²
Viewing Angle	H:140° / V:120°	H:140° / V:120°	H:140° / V:120°
Driving Mode	1/6	1/5	1/2
Refresh Rate	≥1920 Hz	≥1920 Hz	≥1920 Hz
Input Voltage	AC100V / AC240V ±5%	AC100V / AC240V ±5%	AC100V / AC240V ±5%
Max. Power Consumption	1000 W/m²	1000 W/m²	1000 W/m²
Ave. Power Consumption	300 W/m²	300 W/m²	300 W/m²
Working Life	≥100,000 h	≥100,000 h	≥100,000 h
Protection Grade	IP65	IP65	IP65
Working Temperature	-20℃～50℃	-20℃～50℃	-20℃～50℃
Storage Temperature	-40℃～60℃	-40℃～60℃	-40℃～60℃
Maintenance	Rear	Rear	Rear
